Scarf tutorial

Prerequisites

This tutorial assumes that the reader is already familiar with other SHT libraries such as healpy or ducc.

Basic map and alm conventions

Scarf’s alms and maps follow a similar convention to healpy’s.

Alm arrays

For spin-0 transforms, the alm array is assumed to be a one-dimensional array sorted by l, then by m (\(a_{0,0}, a_{1, 0} \ldots a_{l_{max}, 0}, a_{0, 1} \ldots a_{l_{max}, m_{max}}\)) As a result, users can use all healpy.spht.Alm functions on their scarf-created alms.

For higher spin transforms, the alm array is assumed to be a two-dimensional array of shape (2, hp.Alm.getsize(lmax, mmax)). For spin-2 transforms, the first row would be the E alm array, and the second row would be the B alm array.

Map arrays

For spin-0 transforms, the map array is assumed to be a one-dimensional array of length npix, npix being the number of pixels of the map.

For higher spin transforms, the map array is assumed to be a two-dimensional array of shape (2, npix). For spin-2 functions, the first row would be the Q map, and the second row would be the U map.

HEALPix transforms

To perform transforms on HEALPix grid based maps, use the following functions:

• scarf.map2alm

• scarf.map2alm_spin

• scarf.alm2map

• scarf.alm2map_spin

Here is a minimal working example:

import scarf
import numpy as np
nside_mwe = 1
npix_mwe = 12 * nside_mwe ** 2
map_mwe = np.random.random(npix_mwe)
lmax_mwe = 2

scarf_alm = scarf.map2alm(
    map=map_mwe,
    nside=nside_mwe,
    lmax=lmax_mwe,
    mmax=lmax_mwe,
    nthreads=1,
    zbounds=[0, 1]
)

The arguments of the functions are similar to healpy’s with two notable additions:

• The nthreads parameter allow the user to specify the number of threads to use for the calculation (default = 1);

• The zbounds parameter allow the user to specify which portion of the map should be taken into account by the transform. Only rings whose latitude \(\theta\) is in the interval zbounds = \([\cos(\theta_1), \cos(\theta_2)]\) are taken into account.

  Setting zbounds = [0,1] thus restricts map2alm() to the northern hemisphere.

Transforms on custom geometries

A scarf geometry is the specification of a map pixelization scheme.

Some examples are the HEALPix geometry, the Gauss-Legendre (GL) geometry, or the equiangular geometry.

The user can create custom geometries and specify the number of pixels, the weight and the location of each ring, as well as the position of each ring’s data in the map array used.

Note

The pixels inside the ring are always uniformly spaced.

Declare a new geometry using the constructor:

import scarf
import numpy as np

geom = scarf.Geometry(
   nrings=3,
   nph=[4, 4, 4],
   ofs=[0, 4, 8],
   stride=1,
   phi0=[np.pi/4, 0, np.pi/4],
   theta=[np.arccos(1-1/3), np.pi/2, np.arccos(1/3-1)],
   wgt=[np.pi/3]*3
)

A geometry’s attributes can be modified after the initial declaration.

geom.theta[1] = [np.pi/3]

Note

When creating a geometry with the constructor, the ring’s placement are sorted by sin(theta) for performance reasons. This means the ordering of the input arrays may differ from the ordering of the attribute array.

Transforms are then available as methods:

from healpy import Alm

mmax = 2
lmax = 2

scarf_alm = geom.alm2map(
    alm=np.random.random(Alm.getsize(lmax, mmax)),
    lmax=lmax,
    mmax=lmax
)

Phase transforms

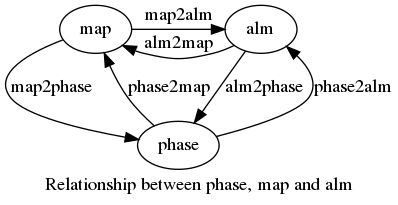

A phase is the DUCC hidden representation of Legendre coefficients inside transforms. If we define the spherical harmonics as

\[Y_{l m}(\theta, \phi) := P_{lm}(\cos \theta) e^{i m\phi}\]

with \(P_{lm}\) being the associated Legendre polynomial, we can define a phase array:

\[\forall 1 \le j \le N_{rings}, 0 \le m \le m_{max}, \quad phase_j^m := \sum_{l=m}^{m_{max}} a_{lm} P_{lm}(\cos \theta_j)\]

Computing these values is a necessary step in both forward and backward transforms.

Methods to geometries exist to perform to compute the phase values, and return them as an array.

from healpy import Alm

mmax = 2
lmax = 2

scarf_alm = geom.alm2phase_spin(
    map=np.random.random(size=(2, Alm.getsize(lmax, mmax)))
    spin=2,
    lmax=lmax,
    mmax=lmax
)

Note

For forward and backward transforms, DUCC’s original phase arrays work differently. We’ve found the content of the phase between the two transforms differ by nph*weight for each ring. Scarf normalizes the output of the phase functions by dividing the phase obtained from map2phase and phase2alm by nph*weight.
